Portable Diesel Generator Open Frame ATS Electric Start 5kVA Three Phase 10HP 6.3kW 230 / 400V Emergency Power AC DC Output Powder Coated Steel 12.5L Fuel Capacity 77dB 4 x 8

If you're looking for a reliable source of backup electrical power for your home or business, then this super powerful open-frame diesel generator from T-MECH is the perfect solution for the job.

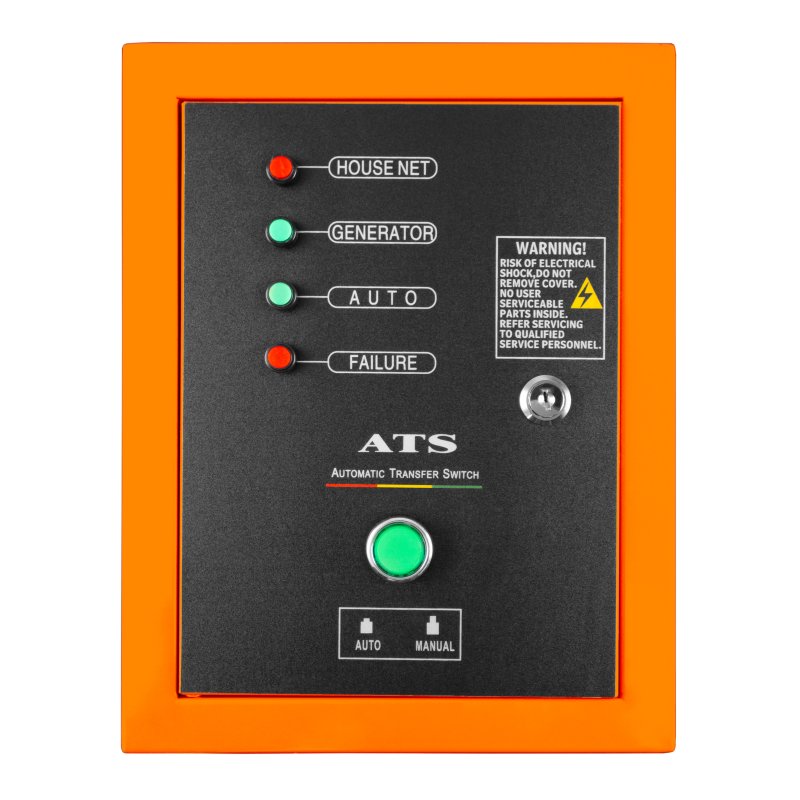

When the power drops out, this supreme diesel generator will automatically kick in thanks to the ATS (automatic transfer switch). As soon as an outage is detected, the ATS will restore power to your electrical items almost instantly for minimal downtime. What's more, the ATS continuously monitors your main power supply to identify when mains power is restored and turns the generator off, saving you time and overall running costs. With an electric start option, you can also easily stop or start the generator manually should you wish to do so.

A generous 12.5L fuel tank provides sufficient power for up to 14 hours at around 50% load, making it suitable for use in a wide range of environments such as domestic, construction, and industrial. With a maximum output of 5kVA, this high-performance three-phase generator can power multiple devices at any one time. Featuring 1 x 16A 230V and 1 x 16A 400V AC sockets as well as 1 x 12A DC outlet, it's suitable for a wide range of equipment.

Made from strong powder-coated steel, the generator is incredibly resistant to scratches and corrosion to ensure it stays looking good and delivers a consistent, powerful performance for a long time to come. The clean black with orange detailing finish creates a truly unique design which will blend in seamlessly with your surroundings. Although open-framed, the machine is moderately quiet when in use, just 77 dB at 7m, for a more pleasant experience. Moving the generator around is made easy with the 4 heavy-duty 8" wheels and sturdy fold-in/out handles, which are fitted to the industrial frame design.

To ensure safe running, the machine features a low-level warning light which will illuminate when more oil is required. In the event of oil pressure becoming too low, the generator will automatically switch off to protect the powerful 10HP engine from potential damage. To top the machine up, we've included a handy fuel funnel for clean and convenient pouring directly into the fuel tank. It's also fitted with an AVR (automatic voltage regulator) control system, which closely monitors the output and protects the unit against voltage fluctuations to produce a smooth stream of power to your sensitive electrical items.

Whether you want the security of having a backup power source in the event of an outage or need a reliable source of portable power when on the move, this impressive diesel generator is sure to satisfy all your needs.

Product Features:

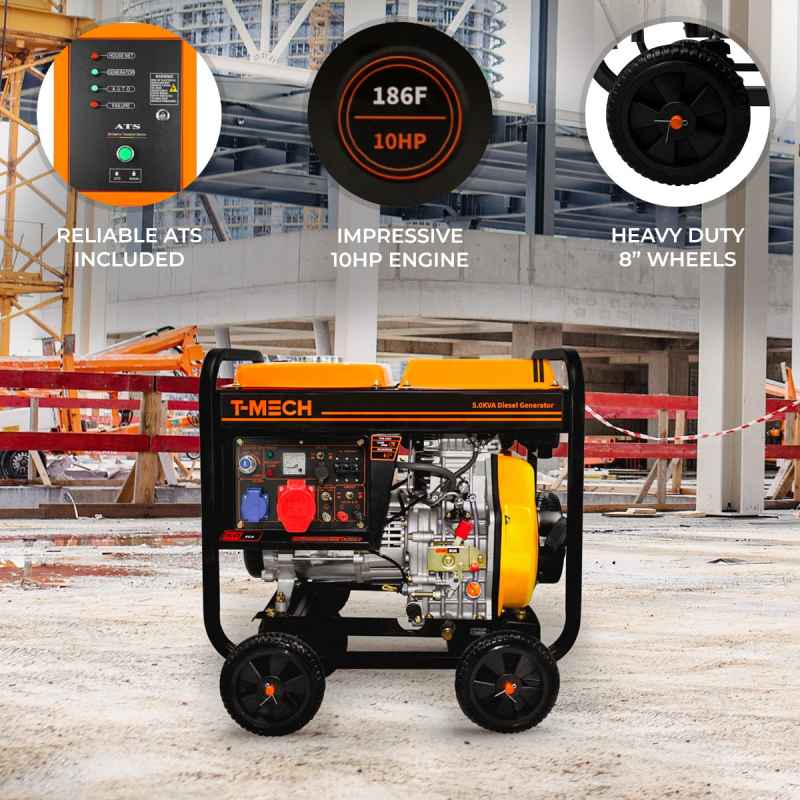

- Electric Start Technology
- Automatic Switch Panel
- Huge 12.5L Fuel Tank Capacity
- 14 Hours Running Time at 50%

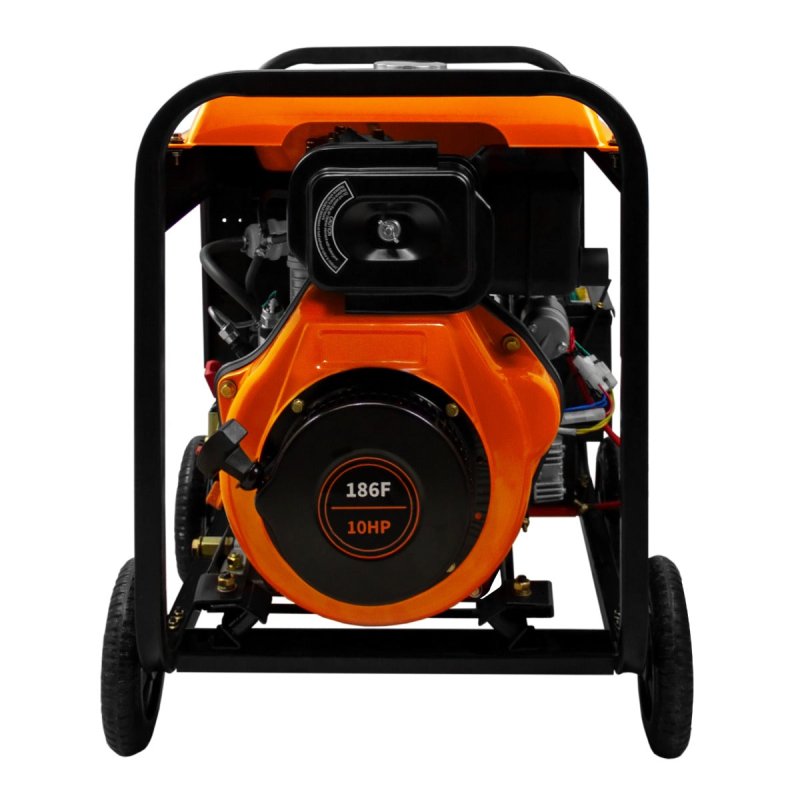

- Impressive 10HP Engine

Specifications:

- Colour: Black and Orange
- Material: Powder Coated Steel
- Weight: 105.7kg

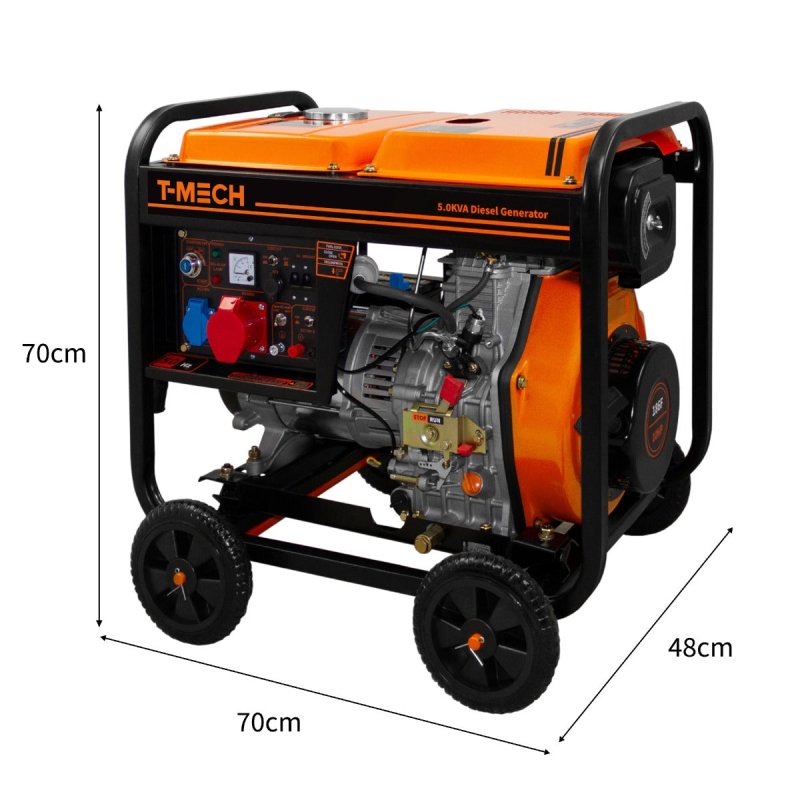

- Height: 698mm / 69.8cm / 27.5"
- Width: 702mm / 70.2cm / 27.6"
- Depth: 484mm / 48.4cm / 19.1"
- Fuel Tank Capacity: 12.5L
- Running Time at 50%: 14 Hours
- Max Engine Output: 5.7kVA
- Engine Output: 6.3kW/ 10HP
- Generator Rated Output: 4500W
- Generator Max Output: 5000W
- Phase: Three
- Starting System: Electric
- Voltage: 230V / 400V
- Frequency: 50Hz
- RPM: 3000
- dB at 7m: 77
- AC Output: 1 x 16A 230V & 1 x 16A 400V
- DC Output: 1 x 12A
- Wheels: 4 x 8"
- CE Certificate: CE & UKCA

Box Contents:

- 1 x Powerful Diesel Generator
- 1 x Practical Tool Kit
- 1 x Handy Fuel Funnel
